Features
- Fixed value control mode
- With temperature calibration function
- With overtemperature protection function
- With overload protection function
- Advanced four-way distributed duct system for more uniform temperature

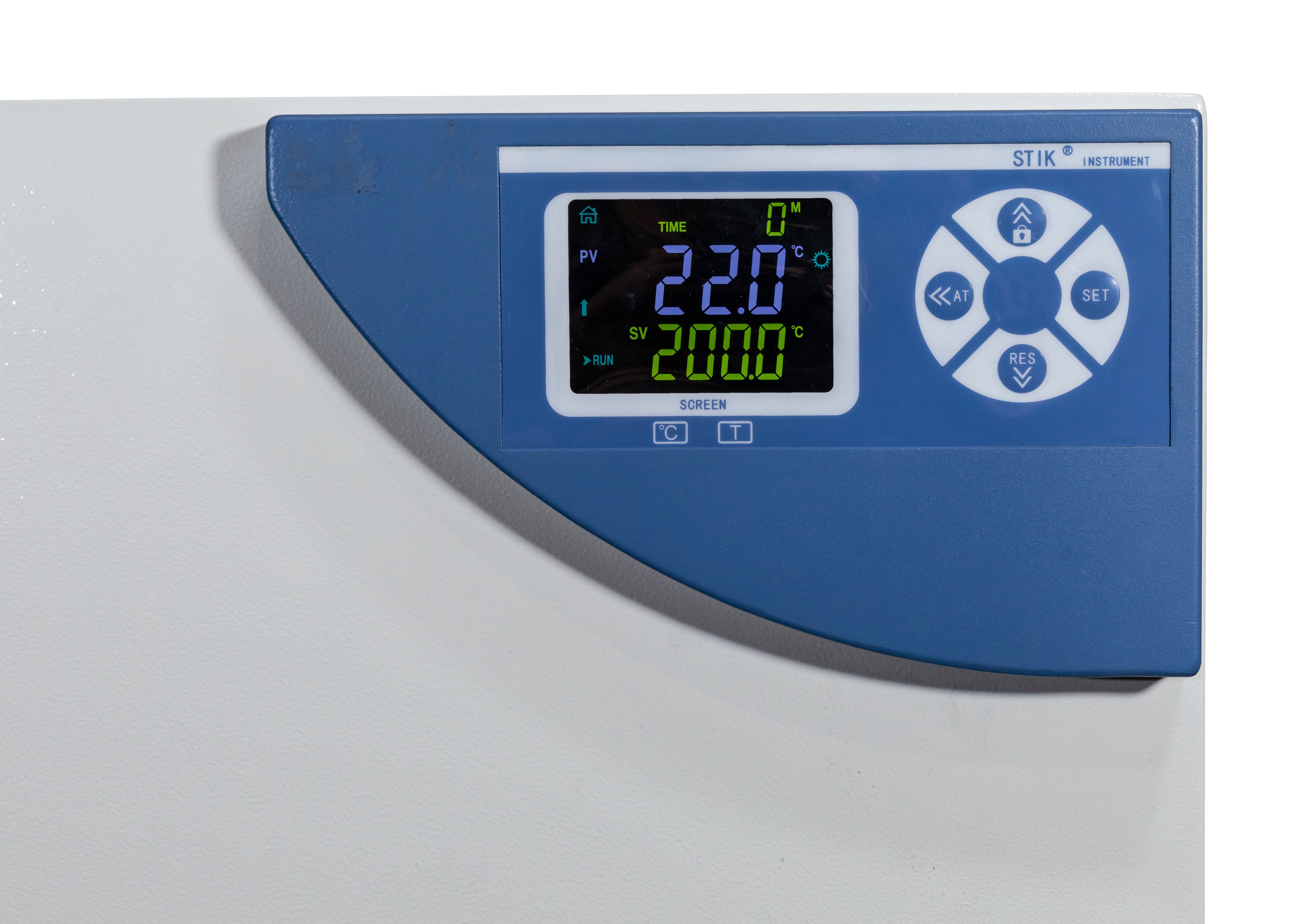

- The control system adopts fuzzy intelligent P.I.D controller

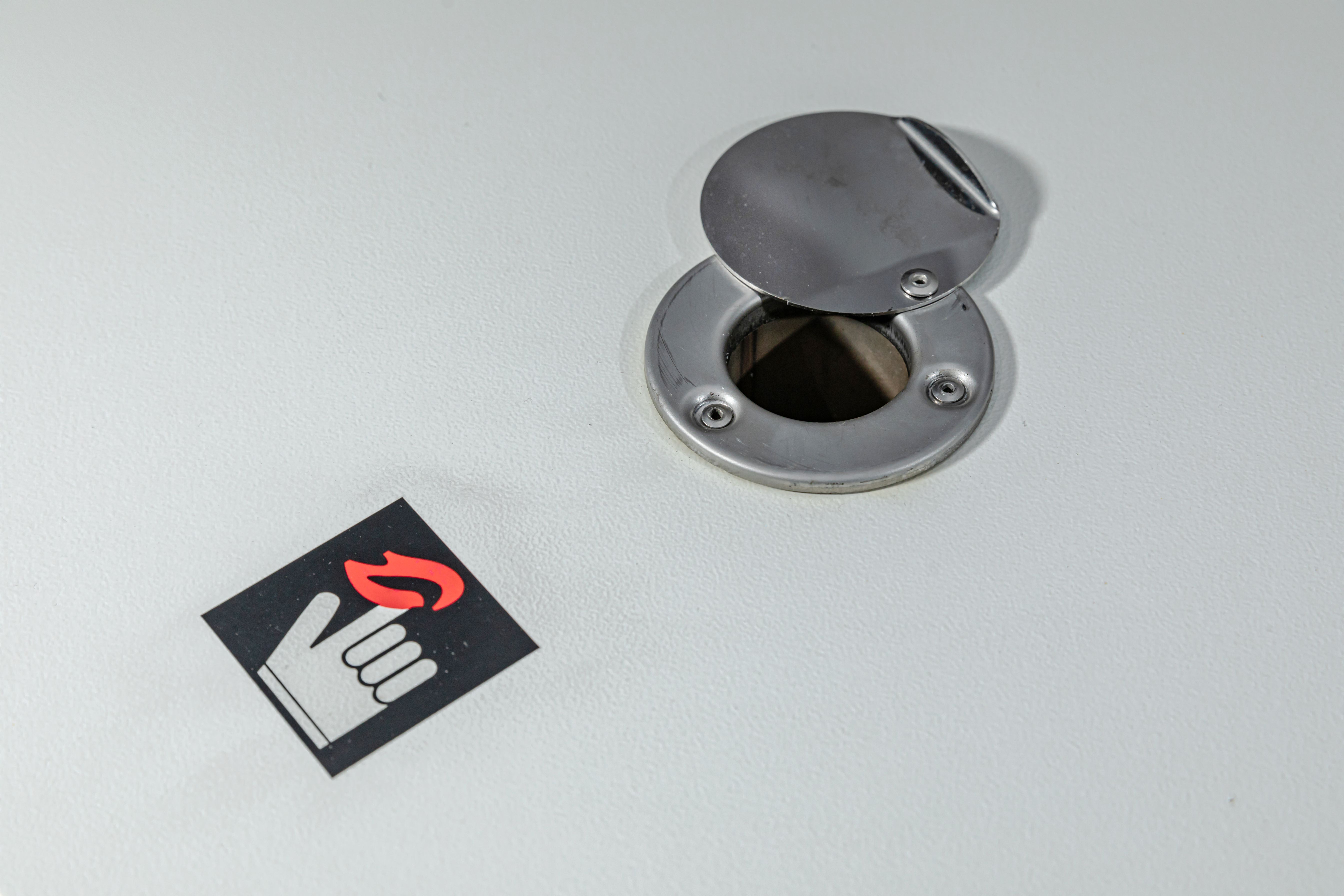

- Top exhaust and test hole

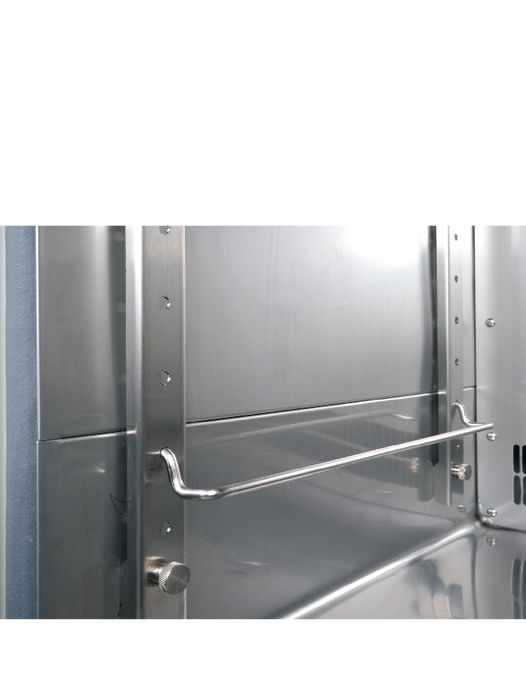

- The divider can be adjusted humanely
- With fresh air entry system
- Two upper and lower limit overtemperature protection functions
| Research version constant temperature incubator | ||||
| LCD series | PCTI-50 | PCTI-80 | PCTI-150 | PCTI-250 |
| Volume (L) | 50 | 80 | 150 | 250 |
| Convection mode | Forced convection | |||
| Temperature control range | Room temperature +5℃~70℃ | |||
| Temperature display accuracy | 0.1 ℃ | |||
| Overtemperature protection | 3 kinds of upper and lower limit overtemperature protection | |||
| Temperature sensor | Using PT100 sensor | |||
| Control mode | Fuzzy intelligent P.I.D control | |||
| Inner glass door | Yes | |||
| Test hole | One place at the top | |||
| Temperature uniformity (37℃) | ± 0.7℃ (37℃) | ± 0.7℃ (37℃) | ± 0.7℃ (37℃) | ± 0.7℃ (37℃) |
| Heating power | 750W | 900W | 1800W | 2500W |
| Inner dimensions (W*D*H)mm | 410*300*410 | 450*300*600 | 500*400*750 | 600*485*850 |
| Outer dimension (W*D*H)mm | 535*575*575 | 575*575*765 | 625*675*915 | 725*765*1015 |
| Tray (standard) | Two layers | Two layers | Three layers | Three layers |
| Input voltage | AC 220V ± 10% 50HZ/60HZ | |||
| Factory standard plug | 10A | 10A | 16A | 16A |
| Product weight | 45kg | 60kg | 85kg | 110kg |

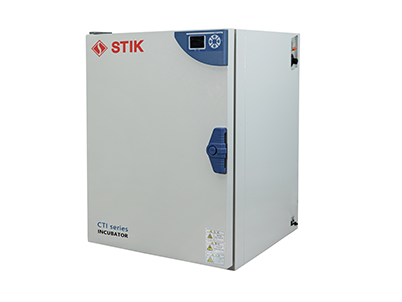

Standard Incubators
50L/80L/150L/250L
*Option
- The printer.
