-Achieve temperature -10~100 degrees, humidity 10%rh~95%rh
-5-level automatic defrosting function, stable and non-fluctuating temperature and humidity, meeting GMP, FDA-required frost-free operation (20 degrees or more)
- Manual defrost function
- Logging, audit trail function and export function (USB encryption export or host computer serial port export)
- Wind speed adjustable control function
- Total illumination and UV intensity control function (based on the total amount of 1.2 million LUX glare and near-ultraviolet light 200W.hr/m2 total)
- Have an electronic signature function that meets FDA requirements to ensure that test data is more objective
- Data real-time recording and export function (USB encryption export or host computer serial port export)
- Fault monitoring, alarm, recording and export functions (USB encryption export or host computer serial port export)
-4 level password function: login password, operator password, administrator password, advanced administrator password
- Three power-off mode selection functions: power failure recovery, stop or restart
- Historical data and historical curve query and download functions
- Maximum support for expanding 32GTF memory cards, which can store at least 10 years of data;
- Ambient temperature detection function
-PDF data export function (exported by PC software)
- PC software monitoring and synchronization control functions, supporting up to 32 devices for simultaneous control.
- Network function for remote monitoring.
- Mobile APP remote monitoring function.
-GPRS SMS alarm function
- Water level monitoring and automatic water replenishment
-Provide communication code, access and drug enterprise integrated equipment management platform
Lighting system:
Meeting the ICH (Q1A and Q1B) guidelines and meeting the guidelines of the National Pharmacopoeia Drug Stability Test.
Visible light (VS) D65 light source, 4500±500 lux, near-ultraviolet light (UV) with a wavelength of 320-400 nm; adjustable light intensity, illumination and ultraviolet radiation test can be completed simultaneously.
Visible/ultraviolet light detection sensor:
Computer monitoring software
Optional computer monitoring software, the device is compatible with the data interface of the comprehensive equipment management platform of the pharmaceutical company, and can provide data access, audit trail and electronic signature for review requirements.
Temperature and humidity range:
Compliance with the pharmacopoeia drug stability test guidelines 40 degrees / 75% RH or 30 degrees / 60% RH 180 days
25 degrees / 60% RH or 30 degrees / 60% RH365 days
Easy to operate and use:
| Effective size / model | PP-LQC series | PP-LQC series | H-LQC series | TH-LQC series |
| 150liter | PMT-150L | PMT-150LT | IMT-150L | IMT-150LT |
| 250liter | PMT-250L | PMT-250LT | IMT-250L | IMT-250LT |
| 450liter | PMT-450L | PMT-450LT | IMT-450L | IMT-450LT |
| 750liter | PMT-750L | PMT-750LT | IMT-750L | IMT-750LT |
| 1100liter | PMT-1100L | PMT-1100LT | IMT-1100L | IMT-1100LT |
| Temperature control range |
0~70℃ (Plus light source plus 10 ℃) |
0~70℃ (Plus light source plus 10 ℃) |
0~70℃ (Plus light source plus 10 ℃) |
-10~100℃ (Plus light source plus 10 ℃) |
| Humidity country | 25～80%RH | 20~95%RH | 10~95%RH | 10~95%RH |
| Humidity fluctuation | ±3%RH | ±3%RH | ±1.5%RH | ±1.5%RH |

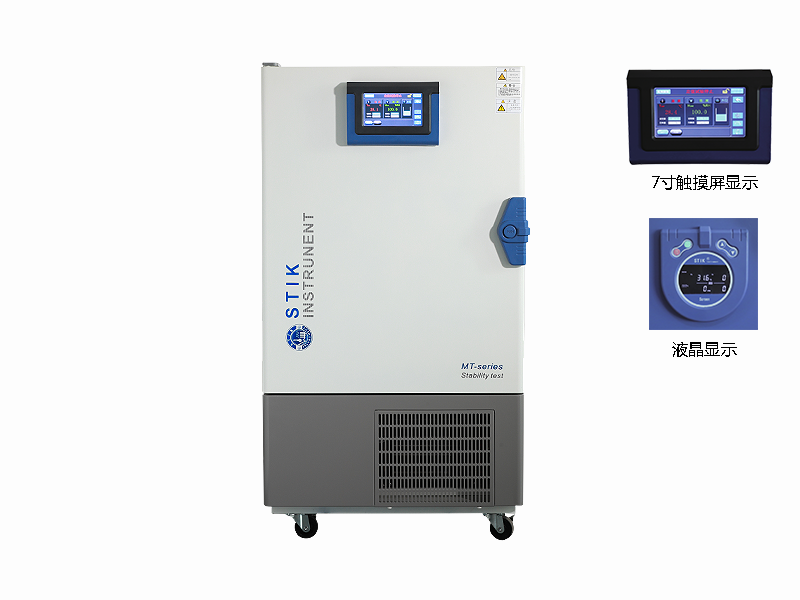

| Display | LCD display | LCD display | 7 inch touch screen | 7 inch touch screen |
| Log, audit trail function | No | No | Have | Have |
| Electronic signature | No | No | Have | Have |
| Mobile APP | No | No | Have | Have |
| Curve display function | No | No | Have | Have |
| Level 4 permissions | No | Have | Have | Have |
| Adjustable wind speed | No | No | Have | Have |
| Data logging and export | No | No | Have | Have |
| Printer (micro) | Optional | Optional | Optional | Standard |
| Computer monitoring software | Optional | Optional | Optional | Standard |
| Program control | Fuzzy intelligent P.l.D control | |||
| Humidity Sensor | Imported electronic | |||
| Frost-free area | Frost-free operation above 20 degrees | |||
|
Light intensity (visible light) |
6000Lux±500Lux | |||
| light source | D65，6500K | |||
| Visible light sensor | Not configurable | Not configurable | Optional | Optional |
| UV lamp sensor | Not configurable | Not configurable | Optional | Optional |
| Near ultraviolet wavelength | 320~400nm | |||
| Near-ultraviolet fluorescent lamp intensity | 0~5W/m2 | |||
| Standards compliant | Meets GMP, FDA, ICH (Q1A and Q1B) guidance requirements, cool white fluorescent light is greater than or equal to 1.2x10⁶Lux.hr, near ultraviolet light> /200w.hr/m² | |||
| Safety equipment | Compressor overheat protection, over temperature protection, water shortage protection, overload protection, fan overheat protection | |||
| Operating temperature | 5~35 degrees (It is recommended that the ambient temperature be lower than 30°C for long-term operation) | |||
| Volume (liter) | 150 | 250 | 450 | 750 | 1100 |
| Liner size (W * D * H) mm | 540*400*700 | 640*440*890 | 750*500*1200 | 1250*500*1200 | 1250*735*1200 |
| Dimensions (W * D * H)mm | 700*830*1300 | 800*870*1470 | 910*930*1785 | 1410*950*1705 | 1430*1195*1800 |
| Shelf | Three floors | Three floors | Four floors | Four floors | Four floors |
| Cooling power | 500W | 750W | 800W | 1000W | 1000W |
| Temperature uniformity（40℃） | ±0.5℃ | ±0.5℃ | ±0.5℃ | ±0.8℃ | ±0.8℃ |
| Heating tube power | 1100W | 1500W | 2000W | 2500W | 3000W |
| Humidification tube power | 750W | 1000W | 1200W | 2000W | 2000W |
| product weight | About 115kg | About 138kg | About 216kg | About 266kg | About 310kg |
-The test technical data is only applicable to the test results under the no-load condition of the equipment and the ambient temperature is 25 degrees!
-The appearance and parameters of the product are subject to change without notice. The appearance of the product may vary due to photography and printing. Please understand!
Computer monitoring software 3Q
Paperless recorder partition light
SMS alarm password lock
Power failure alarm visible light / ultraviolet light total control system
