Features
- Fixed value control mode
- With temperature calibration function
- With overtemperature protection function
- Advanced four-way distributed duct system for more uniform temperature

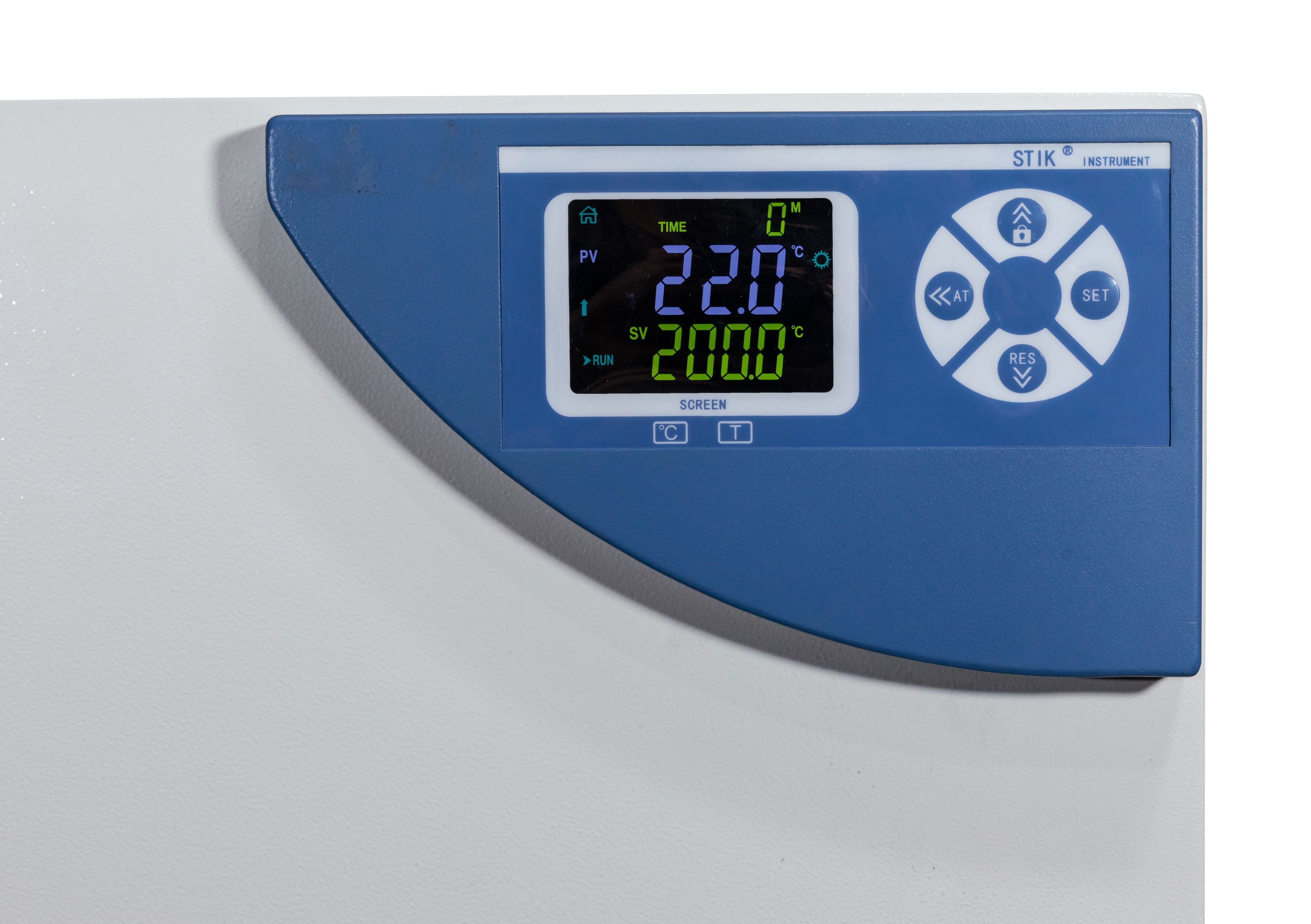

- The control system adopts fuzzy intelligent P.I.D controller

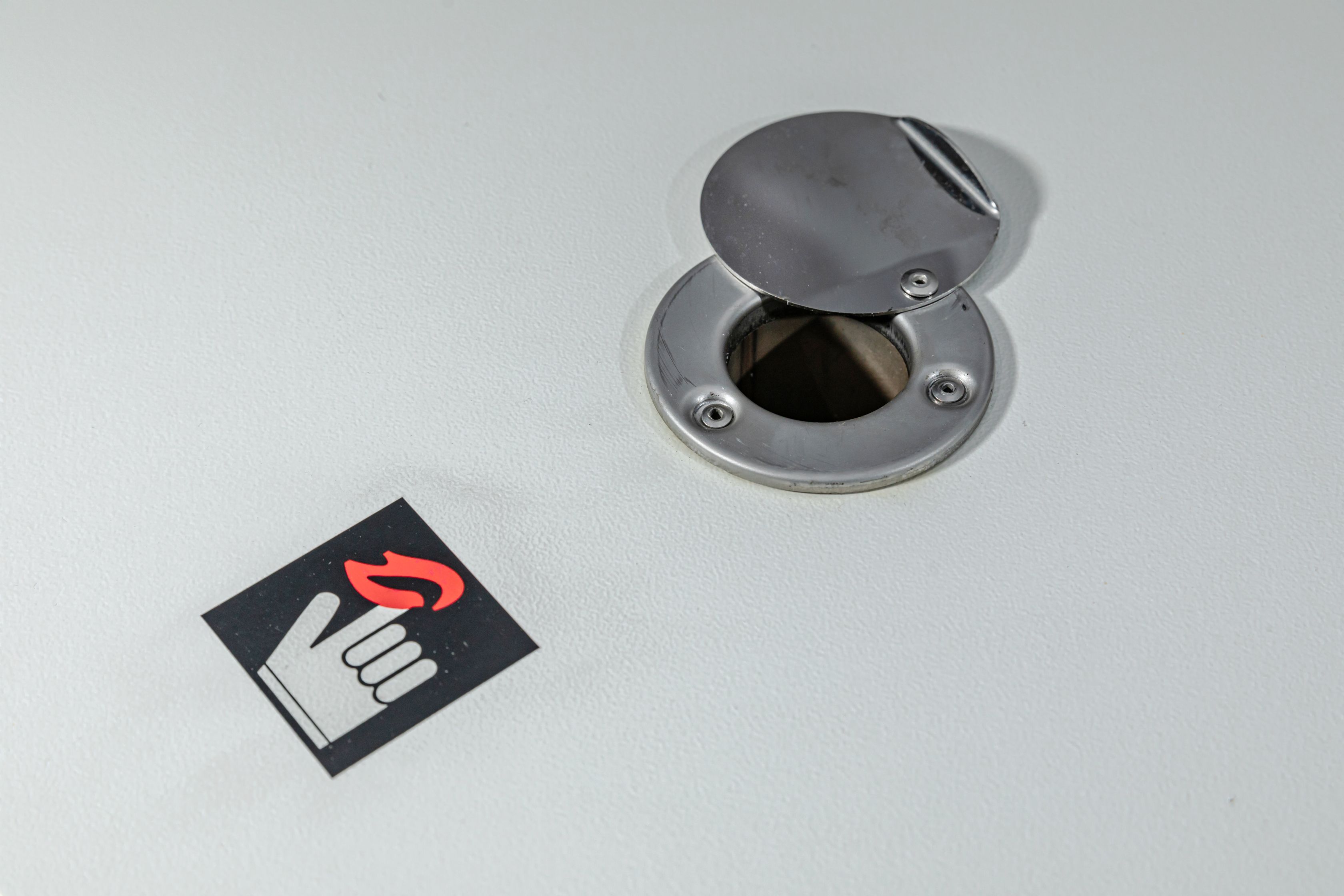

- Top exhaust and test hole

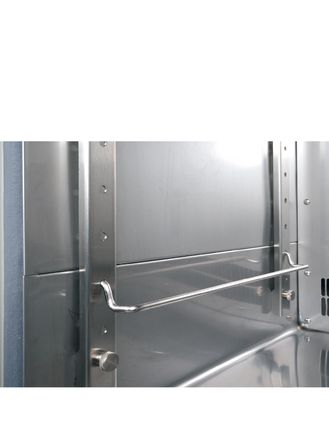

- The divider can be adjusted humanely
- With fresh air entry system
- With overload protection function
| Research version blast drying oven | ||||
| LCD series | PBAO-50 | PBAO-80 | PBAO-150 | PBAO-250 |
| Display | LCD | |||
| Effective volume (L) | 50 | 80 | 150 | 250 |
| Convection mode | Force | Force | Force | Force |
| Temperature control range | Room temperature +10℃~250℃ | |||
| Temperature display accuracy (degree) | 0.1 | 0.1 | 0.1 | 0.1 |
| Overtemperature protection | 3 kinds of overtemperature protection | |||
| Temperature control uniformity | ± 1.5% | ± 1.5% | ± 1.5% | ± 1.5% |
| Sensor | Using PT100 sensor | |||
| Control mode | Fuzzy intelligence P.I.D | |||
| Heating power (power at 250 degrees) | 1200W | 1800W | 2500W | 2800W |
| Tray (standard) | Two layers | Two layers | Three layers | Three layers |
| Vent | A | A | A | A |
| Fresh air intake | Bottom 1 | Bottom 1 | Bottom 1 | Bottom 1 |
| Inner dimensions (W*D*H)mm | 410*300*410 | 450*300*600 | 500*400*750 | 600*485*850 |
| Outer dimension (W*D*H)mm | 535*575*575 | 575*575*765 | 625*675*915 | 725*765*1015 |
| Factory standard plug | 10A | 10A | 16A | 16A |
| Product weight | 40kg | 55kg | 80kg | 105kg |
| Input voltage | AC 220V ± 10% 50HZ/60HZ | |||

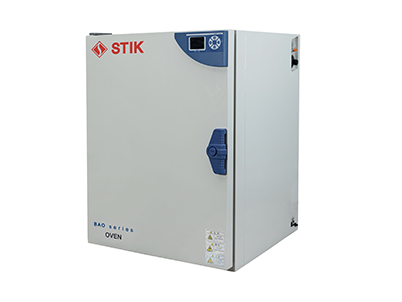

Drying Ovens
50L/80L/150L/250L
* Optional
- The printer.
